ANENG 681 Smart Digital Rechargeable Multimeter 6000 Counts

Original price was: 3,700.00৳ .Current price is: 3,200.00৳ .

Quick Overview

Key Benefit: Eliminates manual dial switching with fully automated signal identification for voltage, current, and resistance.
Key Spec: High-precision 6000 counts LCD display with real-time analog bar graph and True RMS measurement.
Primary Use-Case: Ideal for automotive electronics, HVAC repairs, industrial maintenance, and lab bench diagnostics.
Safety & Protection: Built-in anti-burn ceramic fuse with CAT III 600V safety standard compliance and protective silicone boot.
Unique Selling Point: Environmentally friendly rechargeable 3.7V lithium battery charged via modern USB Type-C port.

Add to wishlist

Compare

SKU: anang681 Categories: Electrical Equipments & Devices, Multimeters Tags: ANENG 681, ANENG multimeter, auto range digital multimeter, digital multimeter price Bangladesh, electrical testing tools, NCV voltage tester, rechargeable multimeter, smart digital multimeter 6000 counts, True RMS multimeter, Type-C multimeter

Description

Product Description

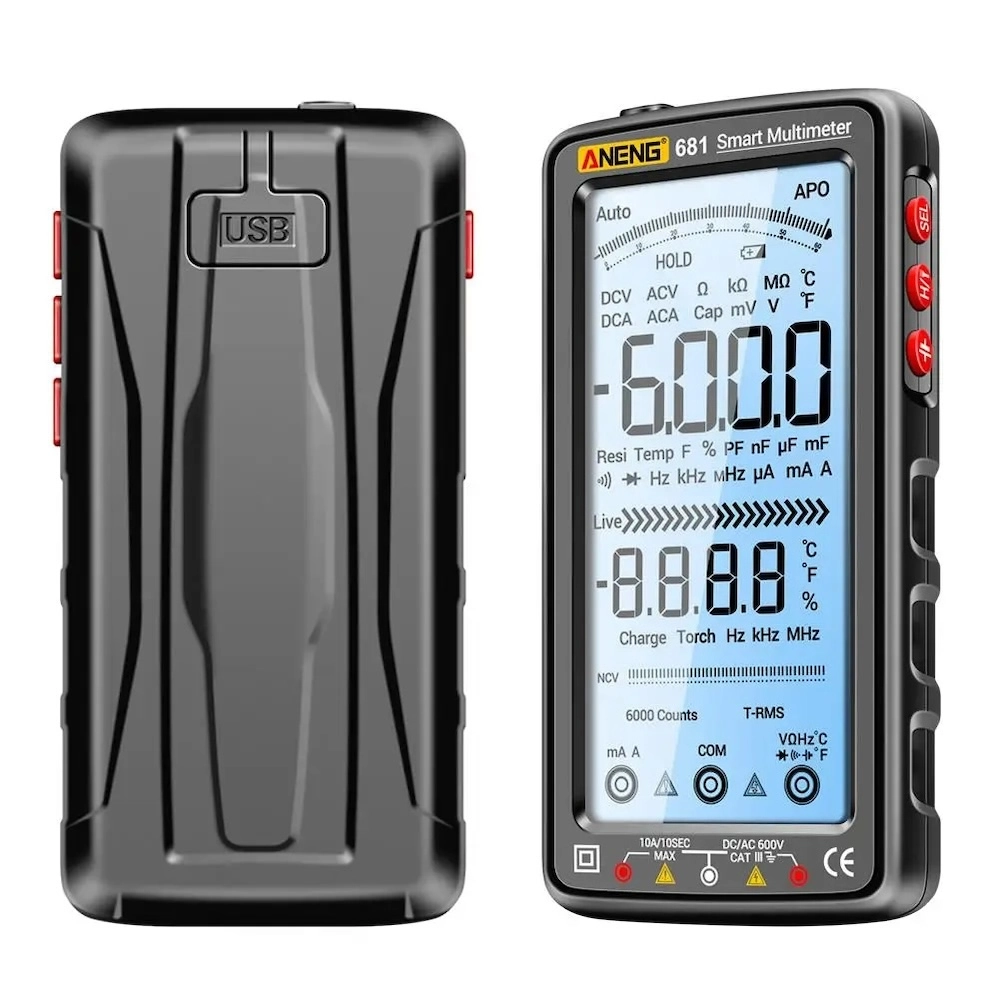

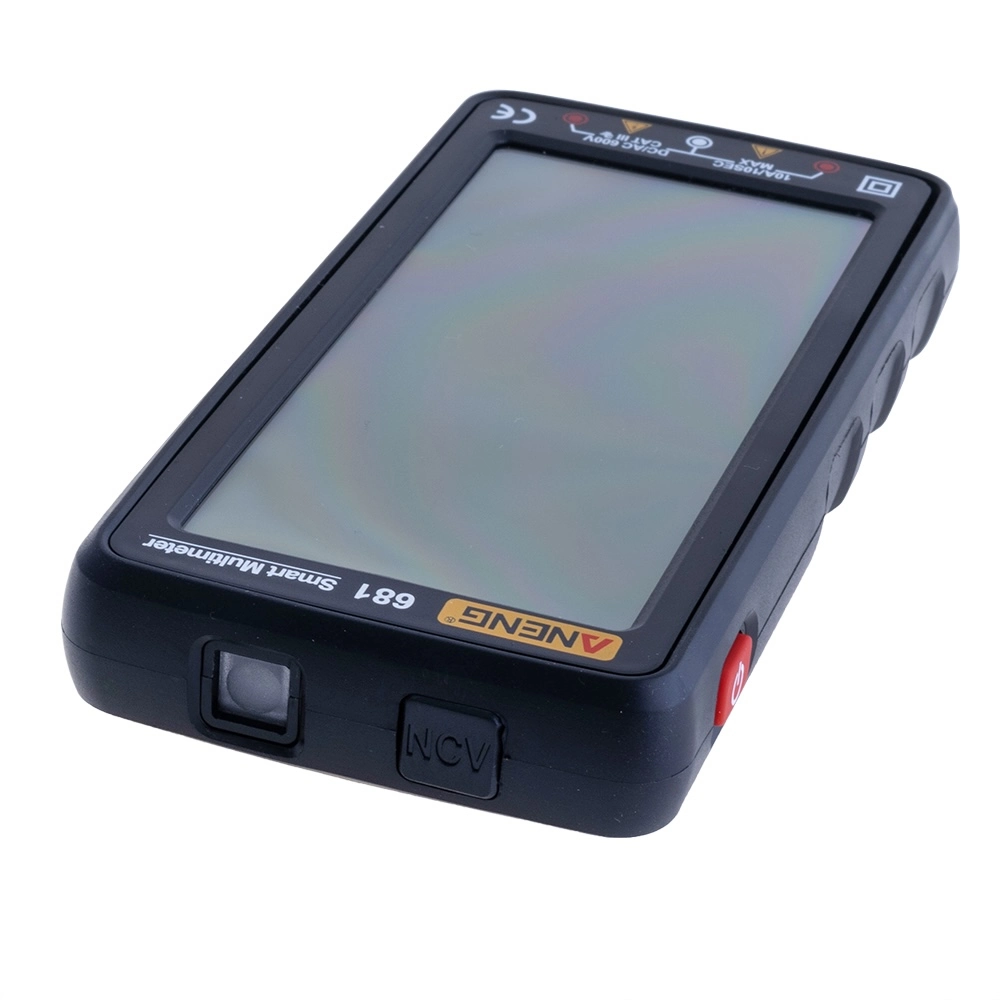

The ANENG 681 is a professional smart digital multimeter 6000 counts unit engineered for modern electrical diagnostics. Unlike traditional manual multimeters, this intelligent device automatically recognizes AC/DC voltage, current, and resistance without dial adjustment. Consequently, technicians can execute rapid troubleshooting without dangerous misconfigurations.

Designed for field engineers and workshops, this compact tester features a large 5-inch backlit LCD screen with an analog bar display. Furthermore, its non-contact voltage (NCV) induction sensor detects live AC lines safely through walls or insulation. You can also perform zero/fire wire tests, frequency readings, capacitance checks, and surface temperature measurements.

Safety and durability remain central to the ANENG 681 design. The shock-absorbent silicone sheath protects internal components from accidental drops and scuffs. Additionally, full-range overload protection and dual ceramic fuses prevent instrument damage during high-energy testing.

Features of the Smart Digital Multimeter 6000 Counts Model

This multimeter operates on a built-in 3.7V rechargeable polymer lithium battery. Therefore, you will never need disposable AAA batteries on job sites again. Simply plug in the included USB Type-C cable to recharge the unit quickly. For low-light environments, the built-in LED flashlight ensures clear visibility into electrical panels.

Technical Specification Table

Parameter	Value
Brand & Model	ANENG 681
Display Type	6000 Counts Backlit LCD with Analog Bar
DC Voltage Range & Accuracy	0V–1000V, ±(0.8% + 10 digits)
AC Voltage Range & Accuracy	0V–750V, ±(1.0% + 10 digits) True RMS
DC / AC Current Range	0–10 A, ±(2.5% + 10 digits)
Resistance Range	0 Ω–60 MΩ, ±(2.5% + 5 digits)
Capacitance Range	0 nF–100 mF, ±(5.0% + 5 digits)
Frequency Range	0.001 Hz–999.9 kHz, ±(0.8% + 3 digits)
Temperature Range	−40°C to 1000°C (−40°F to 1832°F), ±(1.9% + 5 digits)
Special Functions	NCV Detection, Zero/Fire Wire, Diode, Continuity Beep, Data Hold
Power Source	Built-in 3.7V 1200mAh Lithium Polymer Battery (Type-C Charging)
Safety Standard & Fusing	CAT III 600V / 1000V DC; Built-in Ceramic Fuse Protection
Body Material	Impact-Resistant ABS with Silicone Protective Sleeve
Dimensions & Weight	150.8 mm x 74.8 mm x 23.8 mm; ~206 g
Warranty	N/A
Country of Origin	China

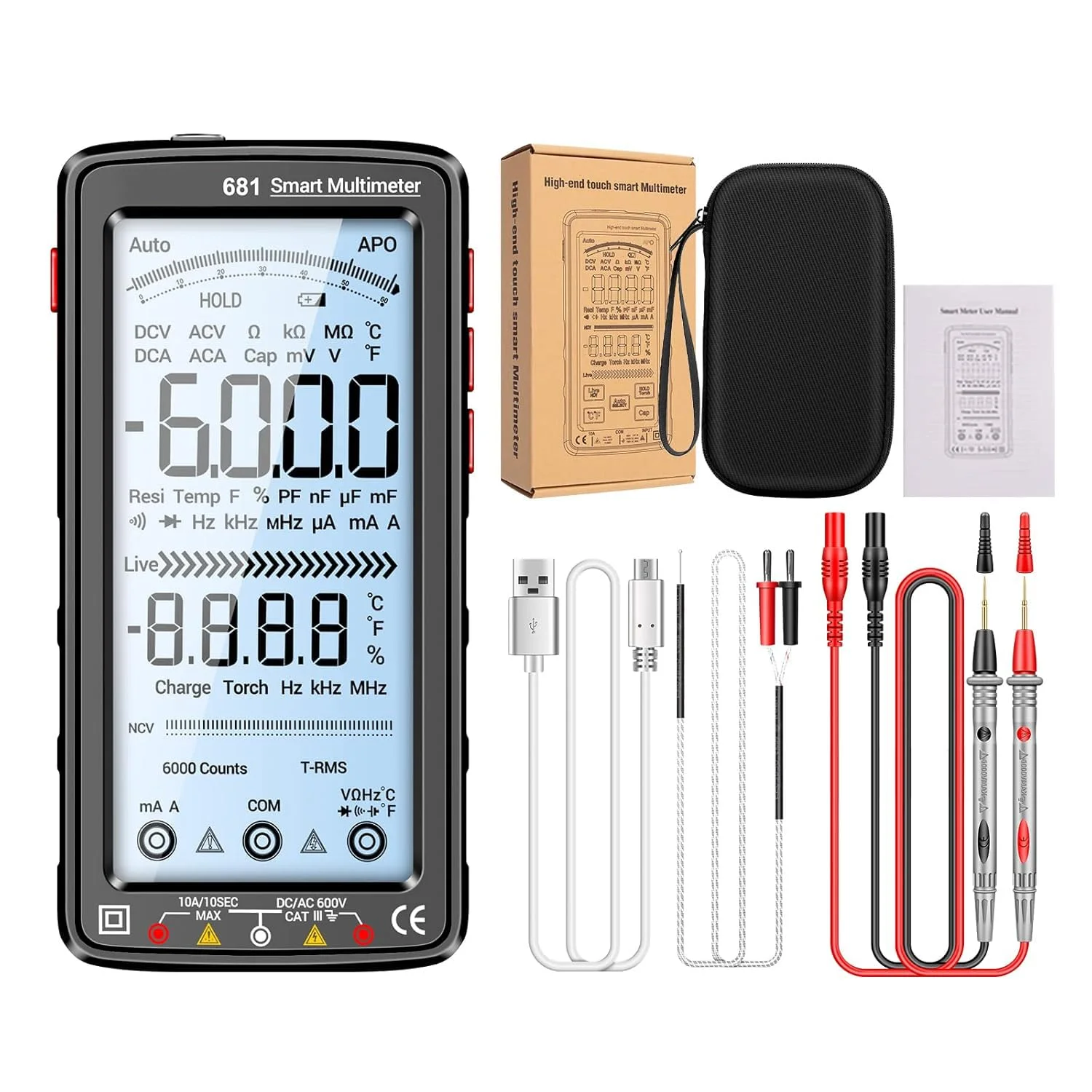

What’s in the Box

1 x ANENG 681 Smart Digital Multimeter
1 x Pair of Silicone Test Leads (Red & Black)
1 x K-Type Thermocouple Temperature Probe
1 x USB Type-C Charging Cable
1 x Protective Carrying Case
1 x User Manual

Get Started / How to Use

Charge the Unit: Connect the provided USB Type-C cable to charge the built-in lithium battery before first operation.
Power On: Press the power button. The meter defaults to Auto Smart mode for automatic parameter detection.
Connect Test Leads: Insert the black lead into the COM jack and the red lead into the primary input terminal.
Perform Measurement: Touch the probes to the circuit test points. The display shows values instantly alongside the analog bar graph.
Use NCV Function: Press the NCV button and hold the top sensor near AC lines to test for voltage without contact.

Safety Note: Always disconnect test leads from high-voltage circuits before changing measurement modes or servicing equipment. Never exceed 1000V DC or 750V AC inputs.

FAQs

Q1: Does the ANENG 681 multimeter require regular battery replacements?

No. The ANENG 681 features a built-in 3.7V rechargeable lithium battery charged via a standard USB Type-C cable.

Q2: Is this multimeter safe for industrial electrical work?

Yes. It meets CAT III safety ratings up to 600V and includes anti-burn ceramic fuses for overload protection.

Q3: How does the auto-smart mode work?

In auto mode, the internal processor automatically detects whether you are measuring AC voltage, DC voltage, resistance, or continuity without turning a selector dial.
